Eight PCB surface treatment processes you have to know

With the continuous improvement of human requirements for living environment, the environmental problems involved in PCB production are partICularly prominent. The topic of lead and bromine is the most popular, lead-free and halogen-free will affect the development of PCB in many aspects.

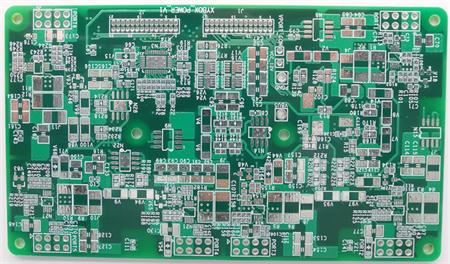

pcb


Although at present, the change in PCB surface treatment process is not very big, which seems to be a distant thing, it should be noted that long-term slow changes will lead to huge changes. With the growing call for environmental protection, the surface treatment process of PCB will certainly change dramatically in the future.

The basic purpose of surface treatment is to ensure good weldability or electrical performance. As the copper in nature tends to exist in the form of oxide in the air, it is unlikely to remain as the original copper for a long time, so other treatments are required for copper. Although most copper oxides can be removed by strong flux in subsequent assembly, the strong flux itself is not easy to remove, so the industry generally does not use strong flux.

There are many PCB surface treatment processes, including hot air leveling, organic coating, chEMIcal nickel plating/gold DIPping, silver dipping and tin dipping, which are introduced one by one below.

1. Hot air leveling (tin spraying)

Hot air leveling, also known as hot air solder leveling (commonly known as tin spraying), is a process of coating molten tin (lead) solder on the PCB surface and leveling (blowing) it with heated compressed air to form a coating that is both resistant to copper oxidation and can provide good solderability. Copper tin intermetallic compound is formed at the joint of solder and copper during hot air leveling. PCB shall be immersed in molten solder during hot air leveling; The air knife blows the liquid solder before the solder solidifies; The air knife can minimize the meniscus of solder on the copper surface and prevent solder bridging.

2. Organic Solderability Protector (OSP)

OSP is a process for copper foil surface treatment of printed circuit boards (PCBs) that meets the requirements of RoHS instructions. OSP is the abbreviation of Organic Solderability Preservatives, which is translated into organic solder mask, also known as copper protector, or Preflux in English. To put it SIMply, OSP is to chemically grow an organic film on the clean bare copper surface.

This film has oxidation resistance, heat shock resistance and moisture resistance to protect the copper surface from further rusting (oxidation or vulcanization, etc.) in normal environment; However, in the subsequent high welding temperature, this protective film must be easily removed by the flux, so that the exposed clean copper surface can be immediately combined with the molten solder in a very short time to become a solid solder joint.

3. Full plate nickel plated gold

Nickel gold plating on the PCB surface refers to coating the conductor with a layer of nickel first and then a layer of gold. Nickel plating is mainly used to prevent the diffusion between gold and copper. Now there are two types of nickel gold plating: soft gold plating (pure gold, the gold surface looks not bright) and hard gold plating (the surface is smooth and hard, wear-resistant, containing cobalt and other elements, the gold surface looks bright). Soft gold is mainly used to make gold wire during chip packaging; Hard metal is mainly used for electrical interconnection at non welding points.

4. Sinking gold

Gold deposition is to wrap a thick layer of nickel gold alloy with good electrical properties on the copper surface, which can protect PCB for a long time; In addition, it also has the environmental tolerance that other surface treatment processes do not have. In addition, gold deposition can also prevent the dissolution of copper, which will be beneficial to lead-free assembly.

5. Tin precipitation

At present, all solders are based on tin, so the tin layer can match any type of solder. The tin deposition process can form a flat copper tin intermetallic compound, which makes the tin deposition have the same good solderability as the hot air leveling without the headache flatness problem of the hot air leveling; The tin plate cannot be stored for too long, and the assembly must be carried out according to the sequence of tin deposition.

6. Sink silver

Silver deposition process is between organic coating and electroless nickel/gold plating, which is relatively simple and fast; Even if exposed to heat, humidity and pollution, silver can still maintain good solderability, but it will lose luster. Silver deposition does not have the good physical strength of electroless nickel/gold plating because there is no nickel under the silver layer.

7. Chemical nickel palladium

Compared with gold precipitation, chemical nickel palladium has an additional layer of palladium between nickel and gold. Palladium can prevent corrosion caused by displacement reaction and make full preparation for gold precipitation. Gold tightly covers palladium, providing a good contact surface.

8. Hard gold electroplating

In order to improve the wear resistance of the product and increase the number of plug and pull, hard gold is plated.

With higher and higher user requirements, stricter environmental requirements and more and more surface treatment processes, it seems a bit dazzling and confusing to choose a surface treatment process with development prospects and stronger versatility. It is also impossible to accurately predict where the PCB surface treatment process will go in the future. In any case, meeting user requirements and protecting the environment must be done first!
