Pcb factory: how to quICkly learn to operate the knife type board splitter?

The rapid development of industrialization has driven the technological innovation of all walks of life. In the electronic processing industry, people's traditional manual PCB has been gradually eliminated, and the yield of finished products and work efficiency cannot keep up with the development of production. Therefore, in order to improve the production performance of the PCBA processing plant, the knife type plate splitter was born to promote the development of the machinery manufacturing industry. It has the following characteristics:

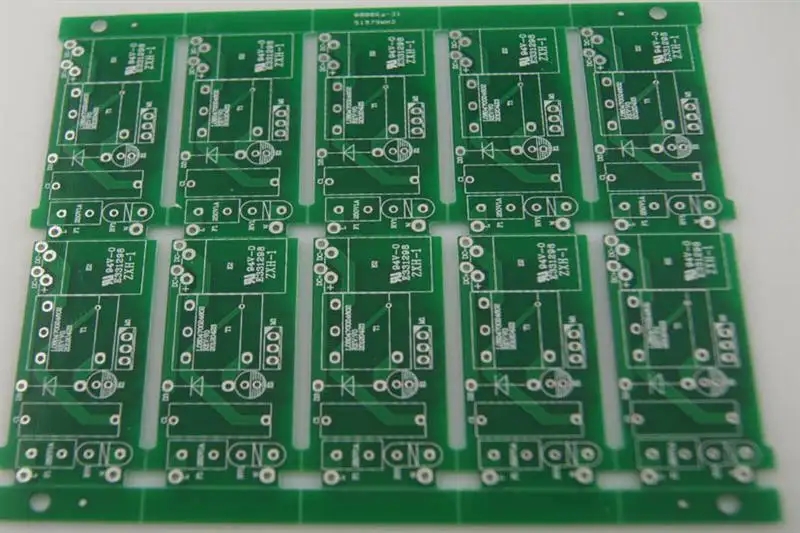

After soldering, the broken PCB connecting multiple pieces will often damage the circuit or break the electronIC parts. The use of this board splitter can avoid damage and improve the work efficiency and quality.

The moving knife type plate splitter can completely reduce the stress and prevent welding spot cracking and part fracture.

The method of upper round knife and lower flat knife is adopted. The PCB board is placed on the lower flat knife of the board splitter. Once the switch is stepped on, the upper round knife moves laterally to the set point, that is, the PCB board is cut and divided, and the cut is flat.

The cutter travel of the board splitter can be set to the forward stop point randomly according to the length of the pcb board. The stop point is 0-100-200-300-400-600-900-1200mm.

The cutting length baffle is set at the rear of the cutter, which can be adjusted according to different widths of PCB boards. PCB boards without V-CUT slots can also be cut easily without oblique cutting.

The thickness of various PCB boards can be adjusted to solve the problem of V-CUT slot depth of PCB boards.

1、 Steps for using the knife type plate splitter 1. Before splitting, first check whether the knife type plate splitter is normal, and then the operator can operate it by himself after confirming that it is correct. The first choice is that the supplier of the knife type plate splitter will debug it for everyone, and then it can be used, and then it can be used after a little check.??? 2. Place the PCB board to be divided, distinguish the direction, front and back of the board, position the board well, determine the location of the division, and press gently to confirm whether it is placed.??? 3. Observe whether each cutting position is correct,

1、 Operating procedures of knife type plate splitter

1. Before splitting, first check whether the knife type plate splitter is normal, and then the operator can operate it by himself after confirmation. The first choice is that the supplier of the knife type plate splitter will debug it for everyone first, and then it can be used. Later, it can be used after a little check.

2. Place the PCB board to be divided, distinguish the direction, front and back of the board, position the board well, determine the location of the division, and confirm whether it is put in place by gently pressing with your hand.

3. Observe whether each cutting position is correct. After checking, step on the switch of the foot walking board splitter to start processing. At this time, pay attention to the safety of hands,

4. Cut off the power supply after finishing the machining of the feed type plate splitter.

Knife type plate splitter

2、 Precautions for the use of knife type plate splitter

1. All buttons shall be normally open after startup

2 In case of emergency, press the "Emergency Stop Switch" on the machine in time

3 The whole process must be well protected against static electricity;

4 It is strictly forbidden to put your hand into the machine during plate splitting;

5 After turning on the power supply, ensure that the corresponding indicator light does not flash after confirming the stroke;

6 Step on the switch until the blade stops running;

7 The slot of the PCB must be clamped on the blade and the PCB must be placed horizontally;

8 Under no circumstances should the protective plate around the blade be removed to avoid danger

9 Do not wear loose clothes when operating the machine. Long hair should be tied or placed in the hat to avoid being turned in by the machine
